| Product Name: | Tapered Roller Bearings | Color: | Silver |
|---|---|---|---|
| Bore Diameter: | 70mm | Outside Diameter: | 115mm |
| Overall Width: | 29mm | Weight: | 1.13kg |
| High Light: | JM612910 Taper Roller Bearing,70mm Diameter Taper Roller Bearing |
||

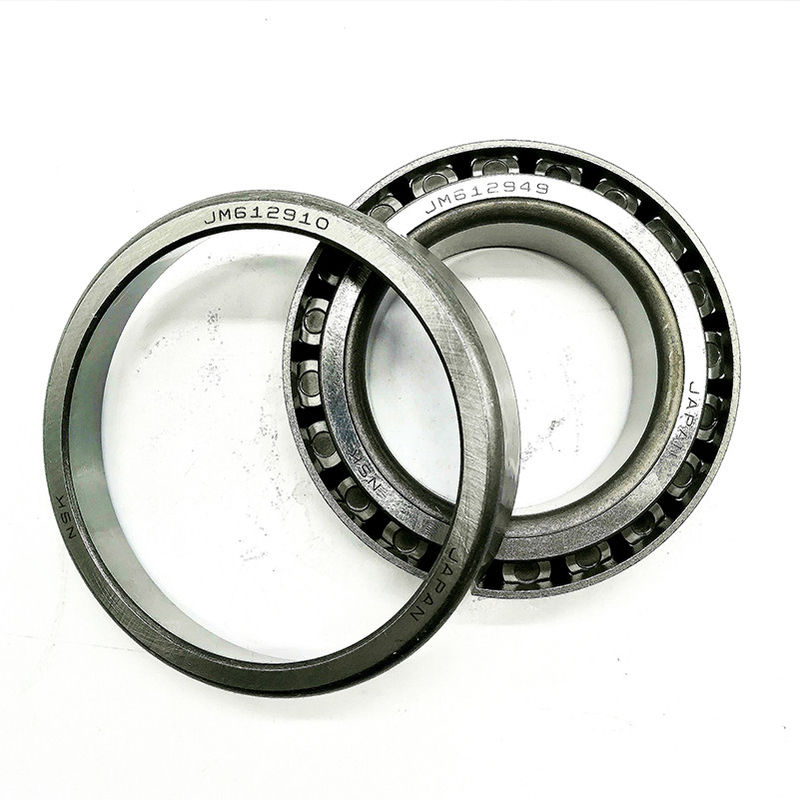

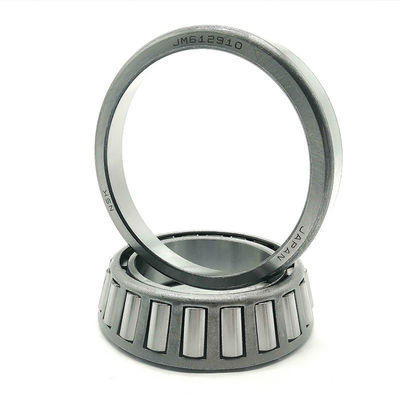

JM612910 Diesel Excavator Taper Roller Bearing 70*115*29mm
Taper roller bearing mainly carry radial, axial combined load with radial load in the main. The capacity of axial load carrying depends on the contact angle of outer ring’s raceway. The bigger the contact angle is, the greater the capacity will be.
Taper roller bearing the angle between the outer raceway generatrix and line, the bearing can bearing heavy load and other Tappered Roller Bearings, it mainly bears joint load based on one way axial load,but not only radial load.
Taper roller bearings have tapered inner and outer ring raceways, The tapered roller is in the middle of the two raceways. This kind of bearings is usually separatable, namely the retainer, inner ring and outer ring can be installed apart. They can withstand immense radial direction load and certain axial load. They are designed in different sizes and styles to meet all kinds of functions.
| Part Name | Tapered Roller Bearings |
| Part Number | JM612910 |
| Size | 70*115*29mm |
| Material | Steel |
| Delivery | 2-7 Work Days |
| Specifications | Standard |
(The pictures may not represent the actual product,please contact us to send the correct real picture...)
| D(mm) | d(mm) | B(mm) | Weight(kg) | |
| JH211749/JH211710 | 120 | 65 | 38.5 | 1.9 |
| 6379/6320 | 135.755 | 65.088 | 56.007 | 3.71 |
| L812148/L812111 | 103.213 | 66.675 | 17.602 | 0.48 |
| 29590/29520 | 107.95 | 66.675 | 25.4 | 0.86 |
| 395A/394A | 110 | 66.675 | 21.996 | 0.796 |
| 3984/3925 | 112.712 | 66.675 | 30.048 | 1.19 |
| 3994/3920 | 112.712 | 66.675 | 30.048 | 1.18 |
| 39590/39520 | 112.712 | 66.675 | 30.162 | 1.19 |
| HM212049/HM212010 | 122.238 | 66.675 | 38.354 | 1.86 |
| 560/552A | 123.825 | 66.675 | 36.678 | 1.92 |
| HM813844/HM813810 | 127 | 66.675 | 36.512 | 2.03 |
| 641/633 | 130.175 | 66.675 | 41.275 | 2.41 |
| 6386/6320 | 135.755 | 66.675 | 56.007 | 3.64 |
| 641/632 | 136.525 | 66.675 | 41.275 | 2.74 |
| H414242/H414210 | 136.525 | 66.675 | 41.275 | 2.75 |
| 399A/394A | 110 | 68.262 | 21.996 | 0.764 |
| 480/472 | 120 | 68.262 | 29.007 | 1.37 |
| 560S/552A | 123.825 | 68.262 | 36.678 | 1.87 |
| H414245/H414210 | 136.525 | 68.262 | 41.275 | 2.7 |
| H715343/H715311 | 136.525 | 68.262 | 46.038 | 3.24 |
| 29675/29620 | 112.712 | 69.85 | 25.4 | 0.949 |
| 33275/33462 | 117.475 | 69.85 | 30.162 | 1.28 |
| 482/472 | 120 | 69.85 | 29.007 | 1.33 |
| 47487/47420 | 120 | 69.85 | 32.545 | 1.47 |
| 29675/29630 | 120.65 | 69.85 | 25.4 | 1.17 |
| 566/563 | 127 | 69.85 | 36.17 | 1.92 |
| 643/632 | 136.525 | 69.85 | 41.275 | 2.63 |
| 655/653 | 146.05 | 69.85 | 41.275 | 3.28 |
| 745A/742 | 150.089 | 69.85 | 46.672 | 3.92 |
| 835/832 | 168.275 | 69.85 | 56.363 | 6.13 |
| 34274/34478 | 121.442 | 69.952 | 23.012 | 1.11 |
| JLM813049/JLM813010 | 110 | 70 | 25 | 0.889 |
| JM612949/JM612910 | 115 | 70 | 29 | 1.13 |
Shipping
A: We are a manufacture
A: Generally it is 1-3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
A: Bearing noise is a function of both the bearing and the way it is used. Some external factors that affect bearing noise include lubricant type, excessive bearing load, and improper installation. Once the abnormal noise occurred, you can contact our engineers, we will help you find the reasons and provide the appropriate solutions.
