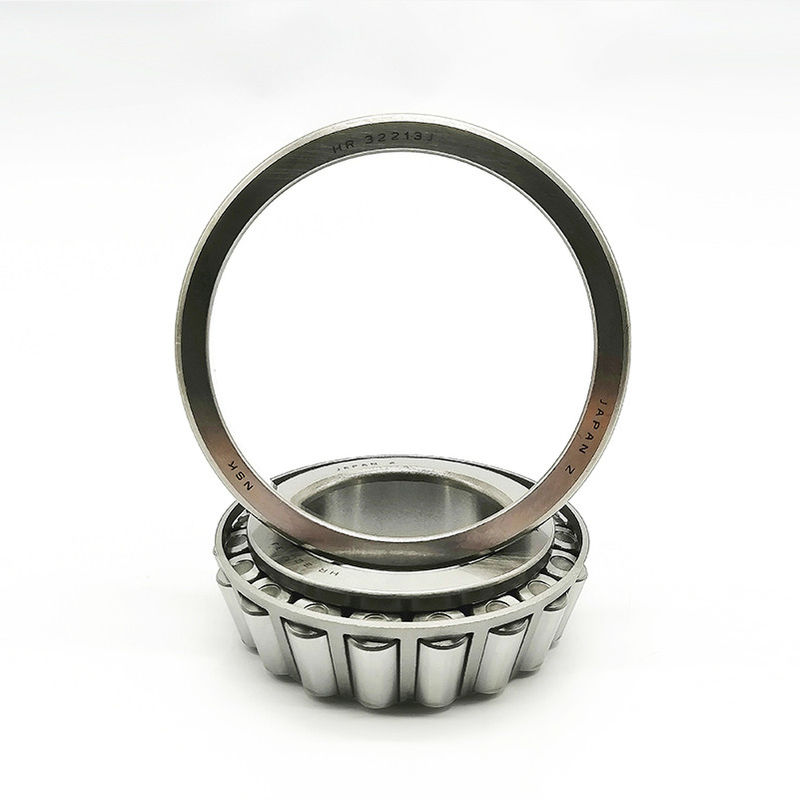

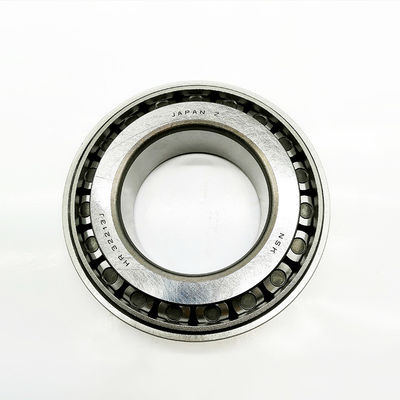

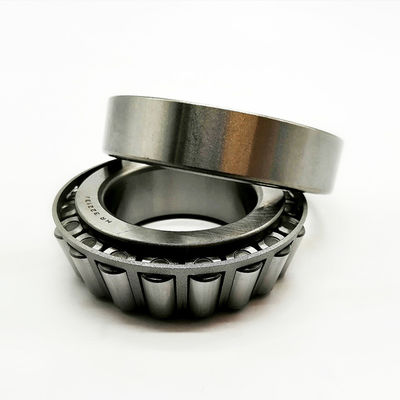

Tapered Roller Bearing 32213J Bearings Size 65x120x32.75mm

Tapered Roller Bearing 32213J Bearings Size 65x120x32.75mm

Tapered roller bearings are rolling element bearings that can support axial forces (i.e., they are good thrust bearings) as well as radial forces.

The inner and outer ring raceways are segments of cones and the rollers are tapered so that the conical surfaces of the raceways, and the roller axes, if projected, would all meet at a common point on the main axis of the bearing. This geometry makes the motion of the cones remain coaxial, with no sliding motion between the raceways and the OD of the rollers.

This conical geometry creates a linear contact patch which permits greater loads to be carried than with spherical (ball) bearings, which have point contact. The geometry means that the tangential speeds of the surfaces of each of the rollers are the same as their raceways along the whole length of the contact patch and no differential scrubbing occurs.

E has different special properties with other inner rings or outer rings marked with the same basic parts code, not interchangeable inner rings or outer rings.

There is a stop ring on the outer diameter of RB

(The pictures may not represent the actual product,please contact us to send the correct real picture...)

Tapered roller bearings are designed to take combined heavy radial loads and heavy thrust loads in one direction while operating at moderate speeds.

The bearings shown are single row with a cone and cup (inner and outer rings) and a pressed steel retainer.

Metric tapers feature a simplified part number for a complete bearing. Inch tapers require a part number for the cup and one for the cone.

The difference between the metric and inch tapers is only in the dimensions of measure for the bearings.
