Product Details:
Payment & Shipping Terms:
|
| Product Name: | Tapered Roller Bearings | Bore Diameter: | 35mm |
|---|---|---|---|
| Outside Diameter: | 73mm | Overall Width: | 24mm |
| Weight: | 0.5KG | Packing: | Or As Per Client's Request,Packed In Carton |

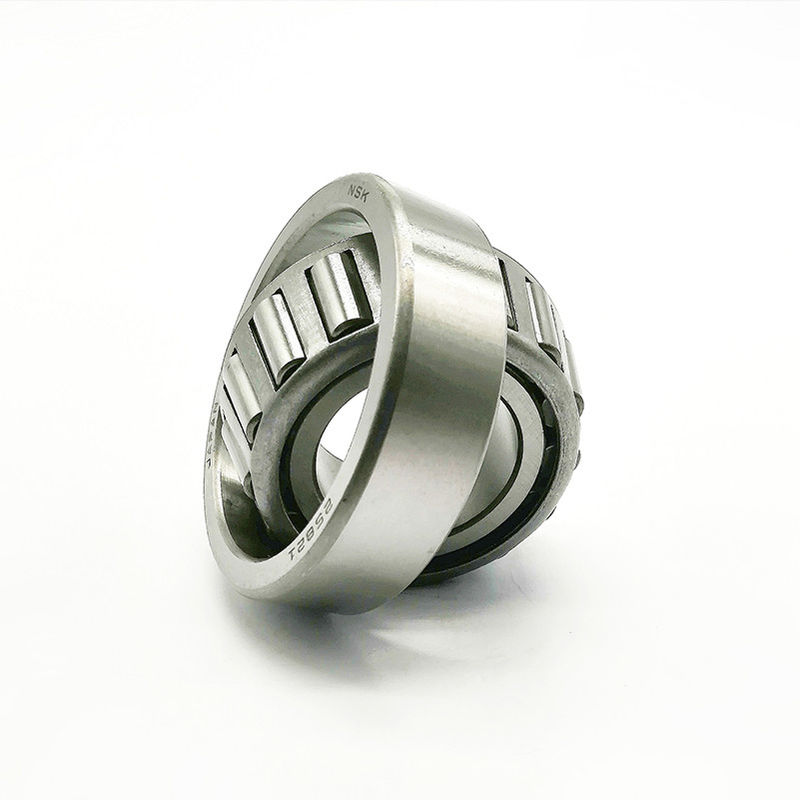

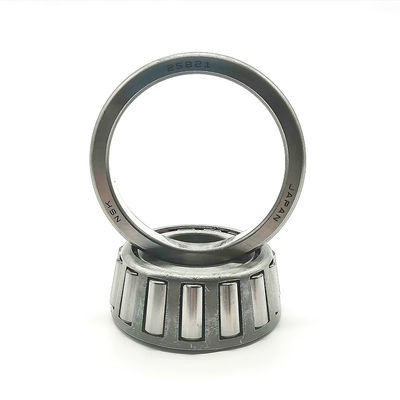

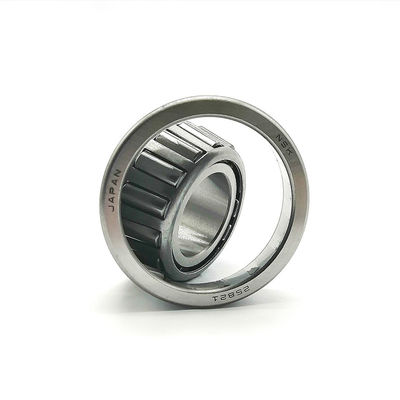

Single Row Tapered Roller Bearings 25821 25877 35x73x24mm
Tapered roller bearings are rolling element bearings that can support axial forces (i.e., they are good thrust bearings) as well as radial forces.
The inner and outer ring raceways are segments of cones and the rollers are tapered so that the conical surfaces of the raceways, and the roller axes, if projected, would all meet at a common point on the main axis of the bearing. This geometry makes the motion of the cones remain coaxial, with no sliding motion between the raceways and the OD of the rollers.
This conical geometry creates a linear contact patch which permits greater loads to be carried than with spherical (ball) bearings, which have point contact. The geometry means that the tangential speeds of the surfaces of each of the rollers are the same as their raceways along the whole length of the contact patch and no differential scrubbing occurs.
E has different special properties with other inner rings or outer rings marked with the same basic parts code, not interchangeable inner rings or outer rings.
There is a stop ring on the outer diameter of RB
| Part Name | Tapered Roller Bearings |
| Part Number | 25821 |
| Size | 35x73x24mm |
| Payment Terms | Western Union,Paypal,Bank transfer, T/T |
| MOQ | 1 PCE |
| Delivery | 2-7 Work Days |
(The pictures may not represent the actual product,please contact us to send the correct real picture...)
Bearing features
| Model | Dimensions(mm) | Weight(kg) | ||
| d | D | T | ||
| 32207 | 35 | 72 | 24.25 | 0.456 |
| 32208 | 40 | 80 | 24.75 | 0.549 |
| 32209 | 45 | 85 | 24.75 | 0.602 |
| 32210 | 50 | 90 | 24.75 | 0.644 |
| 32211 | 55 | 100 | 26.75 | 0.86 |
| 32212 | 60 | 110 | 29.75 | 1.18 |
| 32213 | 65 | 120 | 32.75 | 1.55 |
| 32214 | 70 | 125 | 33.25 | 1.66 |
| 32215 | 75 | 130 | 33.25 | 1.72 |
| 32216 | 80 | 140 | 35.25 | 2.13 |
| 32217 | 85 | 150 | 38.5 | 2.64 |
| 32218 | 90 | 160 | 42.5 | 3.41 |
| 32219 | 95 | 170 | 45.5 | 4.22 |
| 32220 | 100 | 180 | 49 | 5.05 |
| 32221 | 105 | 190 | 53 | 6.26 |
| 32222 | 110 | 200 | 56 | 7.35 |
| 32304 | 20 | 52 | 22.25 | 0.241 |
| 32305 | 25 | 62 | 25.25 | 0.376 |
| 32306 | 30 | 72 | 28.75 | 0.57 |
| 32307 | 35 | 80 | 32.75 | 0.765 |
| 32308 | 40 | 90 | 35.25 | 1.05 |
| 32309 | 45 | 100 | 38.25 | 1.42 |
| 32310 | 50 | 110 | 42.25 | 1.88 |
| 32311 | 55 | 120 | 45.5 | 2.39 |
| 32312 | 60 | 130 | 48.5 | 2.96 |
| 32313 | 65 | 140 | 51 | 3.6 |
| 32005X | 25 | 47 | 15 | 0.116 |
| 32006X | 30 | 55 | 17 | 0.172 |
| 32007X | 35 | 62 | 18 | 0.23 |
| 32008X | 40 | 68 | 19 | 0.28 |
| 32009X | 45 | 75 | 20 | 0.354 |
| 32010X | 50 | 80 | 20 | 0.38 |
| 32011X | 55 | 90 | 23 | 0.567 |
| 32012X | 60 | 95 | 23 | 0.608 |
| 32013X | 65 | 100 | 23 | 0.646 |
| 32014X | 70 | 110 | 25 | 0.869 |
| 32015X | 75 | 115 | 25 | 0.925 |
| 32016X | 80 | 125 | 29 | 1.32 |
| 32017X | 85 | 130 | 29 | 1.38 |
| 32018X | 90 | 140 | 32 | 1.78 |
FAQ
Q:Could you accept OEM and customize?
A:YES,we can customize for you according to sample or drawing.
Q:IS you company factory or Trade Company?
A:We have our own factory ;our type is factory +trade.
Q:Could you offer door to door service?
A:Yes,by express(DHL,FEDEX,TNT,EMS,7-10 days to your city.)
Q: Which shipping way do you use
A: For small qty goods, we usually send by express, such as DHL, Fedex, TNT
For big qty goods, we usually send by air or by sea
Q:What is your payment term?
A:T/T, Western Union and Paypal,Bank transfer etc
Q:Could you tell me the delivery timr of your doods?
A:If stock,in 7days or base on your order quantity
