Product Details:
Payment & Shipping Terms:
|
| Product Name: | Cylindrical Roller Bearing | Bore Diameter: | 45mm |
|---|---|---|---|
| Outside Diameter: | 85mm | Overall Width: | 23mm |
| Weight: | 0.56KG | Material: | Bearing Steel |

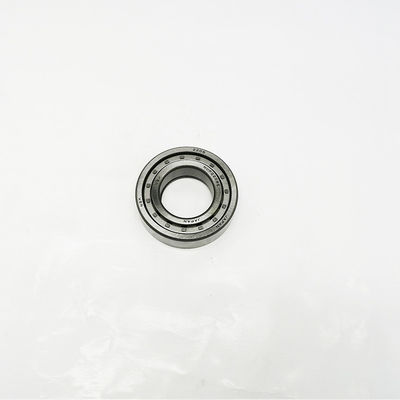

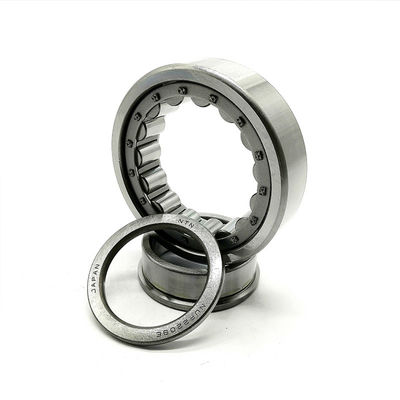

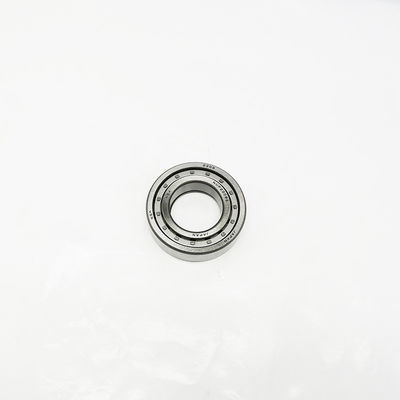

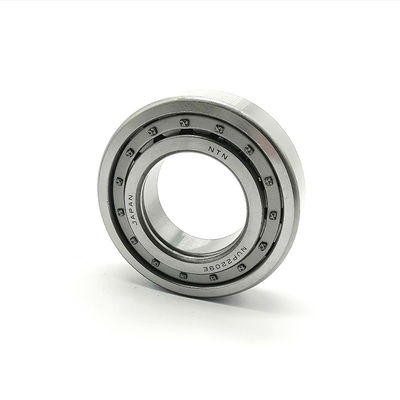

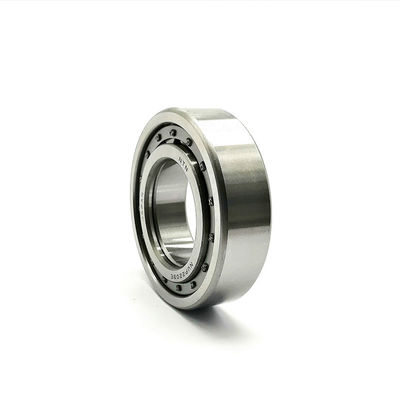

NUP2209E Cylindrical Roller Bearing 45x85x23mm 708-2L-32150 for PC130-8 PC200-8
1.Cylindrical roller bearings are separable bearings, installation and removal is very convenient.
2.Cylindrical roller bearings can withstand greater radial load, suitable for use in high speed applications.
3.Cylindrical roller bearings can be divided into single row, double row and multi-row cylindrical roller bearings and other different structures.
4.Cylindrical roller bearings can be divided into PO, P6, P5, P4, P2 according to accuracy class.
| Part Name | Cylindrical Roller Bearing |
| Part Number | NUP2209E |
| HS Code | 8482101000 |
| Size | 45x85x23mm |
| Payment Terms | Western Union,Paypal,Bank transfer, T/T |
| MOQ | 1 PCE |
Cylindrical Roller Bearings are designed to handle radial load at high performance and speed. Because of their particular design, These Bearings are one of the most suitable options for carrying multiple radial loads yet there are some other factors too that define the ultimate outcome or performance of this apparatus. In order to get the maximum results from these, you must optimize their cost, weight, performance, load capacity and durability. As these bearings are used for long term, you have to select the suitable variation according to your need carefully.
(The pictures may not represent the actual product,please contact us to send the correct real picture...)
With Our Customers
Other Items
| Bearing Model | Main Dimensions(mm) | Weight(kg) | |||||||
| NU | NJ | NUP | N | NF | d | D | B | NU | N |
| NU2315E | NJ | NUP | 75 | 160 | 55 | 5.25 | |||
| NU415 | NJ | NUP | N | NF | 75 | 190 | 45 | 6.22 | 6.06 |
| NU1016 | NJ | NUP | N | 80 | 125 | 22 | 0.98 | 0.965 | |
| NU216 | NJ | NUP | N | NF | 80 | 140 | 26 | 1.5 | 1.47 |
| NU216E | NJ | NUP | 80 | 140 | 26 | 1.67 | |||
| NU2216 | NJ | NUP | N | 80 | 140 | 33 | 1.93 | 1.89 | |
| NU2216E | NJ | NUP | 80 | 140 | 33 | 2.12 | |||
| NU316 | NJ | NUP | N | NF | 80 | 170 | 39 | 3.86 | 3.77 |
| NU316E | NJ | NUP | 80 | 170 | 39 | 4.22 | |||
| NU2316 | NJ | NUP | N | 80 | 170 | 58 | 5.79 | 5.67 | |
| NU2316E | NJ | NUP | 80 | 170 | 58 | 6.25 | |||
| NU416 | NJ | NUP | N | NF | 80 | 200 | 48 | 7.32 | 7.14 |
| NU1017 | NJ | NUP | N | 85 | 130 | 22 | 1.03 | 1.01 | |
| NU217 | NJ | NUP | N | NF | 85 | 150 | 28 | 1.87 | 1.83 |
| NU217E | NJ | NUP | 85 | 150 | 28 | 2.11 | |||
| NU2217 | NJ | NUP | N | 85 | 150 | 36 | 2.44 | 2.39 | |
| NU2217E | NJ | NUP | 85 | 150 | 36 | 2.68 | |||
| NU317 | NJ | NUP | N | NF | 85 | 180 | 41 | 4.54 | 4.44 |
| NU317E | NJ | NUP | 85 | 180 | 41 | 4.81 | |||
| NU2317 | NJ | NUP | N | 85 | 180 | 60 | 6.7 | 6.57 | |
| NU2317E | NJ | NUP | 85 | 180 | 60 | 7.16 | |||
| NU1018 | NJ | NUP | N | 90 | 140 | 24 | 1.33 | 1.31 | |
| NU218 | NJ | NUP | N | NF | 90 | 160 | 30 | 2.3 | 2.25 |
| NU218E | NJ | NUP | 90 | 160 | 30 | 2.44 | |||
| NU2218 | NJ | NUP | N | 90 | 160 | 40 | 3.1 | 3.04 | |
| NU2218E | NJ | NUP | 90 | 160 | 40 | 3.33 | |||
| NU318 | NJ | NUP | N | NF | 90 | 190 | 43 | 5.3 | 5.18 |
| NU318E | NJ | NUP | 90 | 190 | 43 | 5.72 | |||
| NU2318 | NJ | NUP | N | 90 | 190 | 64 | 7.95 | 7.79 | |
| NU2318E | NJ | NUP | 90 | 190 | 64 | 8.56 | |||
| NU1019 | NJ | NUP | N | 95 | 145 | 24 | 1.4 | 1.38 | |
| NU219 | NJ | NUP | N | NF | 95 | 170 | 32 | 2.78 | 2.72 |
| NU219E | NJ | NUP | 95 | 170 | 32 | 3.02 | |||
Our Service
1. More 10 years bearing products manufacturing and exporting experiences.
2. Intergration of Industry and Trade ,price is more cheaper.
3. Quality standard
4. OEM order and non-standard bearing order can be accepted.
5. Many sizes of bearing are available. Large quantity bearing can be provided.
