Product Details:
Payment & Shipping Terms:
|
| Product Name: | Cylindrical Roller Bearing | Bore Diameter: | 75mm |
|---|---|---|---|
| Outside Diameter: | 160mm | Overall Width: | 37mm |
| Weight: | 3.4 Kg | Color: | Silver |

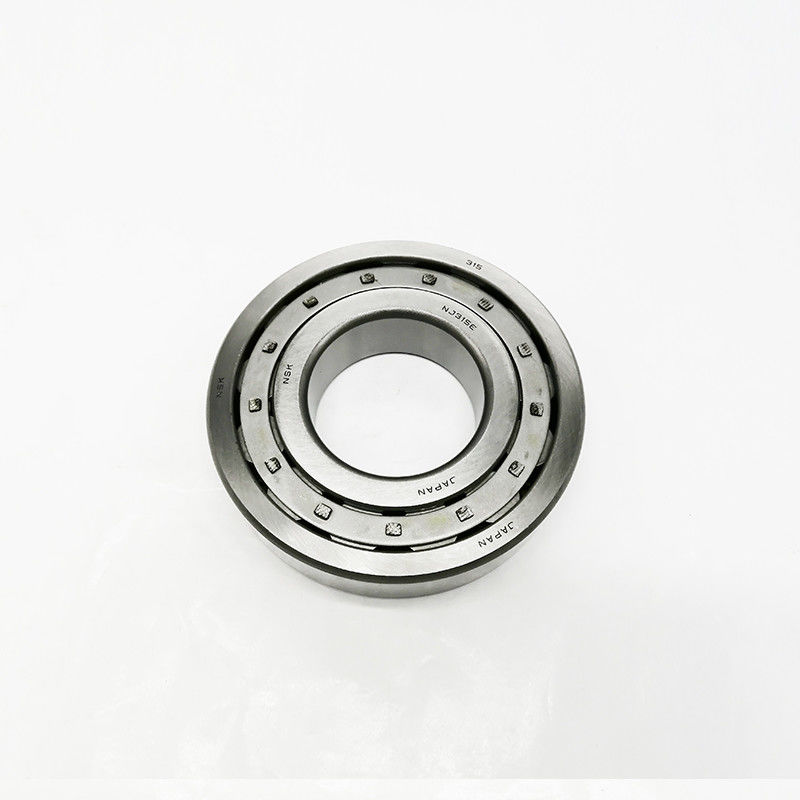

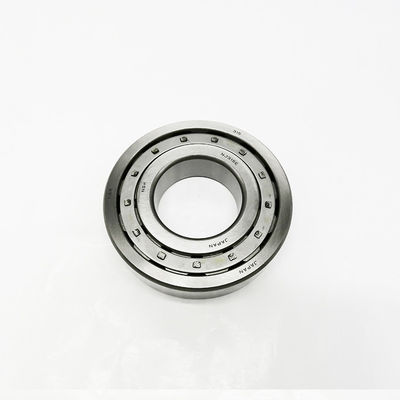

NJ315E Cylindrical Roller Bearing Size 75*160*37mm
1.Cylindrical roller bearings are separable bearings, installation and removal is very convenient.
2.Cylindrical roller bearings can withstand greater radial load, suitable for use in high speed applications.
3.Cylindrical roller bearings can be divided into single row, double row and multi-row cylindrical roller bearings and other different structures.
4.Cylindrical roller bearings can be divided into PO, P6, P5, P4, P2 according to accuracy class.
| Part Name: | Cylindrical Roller Bearing |
| Part Number | NJ315E |
| Size | 75*160*37mm |
| HS Code | 8482101000 |
| Place of Origin | China (Mainland). |
| Features | (1) high precision; |
| (2) high speed; | |
| (3) high load carrying capacity; | |
| (4) low noise; | |
| (5) long life span. | |
| Application | electric motor, vehicle,machine tool spindle, combustion motor, gas turbine, gearbox, rolling machine, |
| oscillating screen, crane etc. | |
| Payment Term | TT or L/C or Western Union or Bank transfer |
| Shipment time | ready stock, immediate shipment. |
| Shipping Port | Guangzhou,Shenzhen |
| Samples | samples are available. |
(The pictures may not represent the actual product,please contact us to send the correct real picture...)
Other Items
| Bearing No. | Boundary dimensions | Basic load rating(kN) | Limiting speeds | Mass | ||||||
| mm | Dynamic | Static | rpm | Kg | ||||||
| d | D | B | rs min | rs1 min | Cr | Cor | Grease | Oil | ||
| NJ304E | 20 | 52 | 15 | 1.1 | 0.6 | 31.5 | 26.9 | 13,000 | 15,000 | 0.176 |
| NJ305E | 25 | 62 | 17 | 1.1 | 1.1 | 41.5 | 37.5 | 11,000 | 13,000 | 0.275 |
| NJ306E | 30 | 72 | 19 | 1.1 | 1.1 | 53 | 50 | 9,300 | 11,000 | 0.398 |
| NJ307E | 35 | 80 | 21 | 1.5 | 1.1 | 71 | 71 | 8,100 | 9,600 | 0.545 |
| NJ308 | 40 | 90 | 23 | 1.5 | 1.5 | 58.5 | 57 | 8,000 | 9,400 | 0.658 |
| NJ308E | 40 | 90 | 23 | 1.5 | 1.5 | 83 | 81.5 | 7,200 | 8,500 | 0.754 |
| NJ309 | 45 | 100 | 25 | 1.5 | 1.5 | 74 | 71 | 7,200 | 8,400 | 0.877 |
| NJ309E | 45 | 100 | 25 | 1.5 | 1.5 | 97.5 | 98.5 | 6,500 | 7,600 | 0.996 |
| NJ310 | 50 | 110 | 27 | 2 | 2 | 87 | 86 | 6,500 | 7,700 | 1.14 |
| NJ310E | 50 | 110 | 27 | 2 | 2 | 110 | 113 | 5,900 | 6,900 | 1.3 |
| NJ311 | 55 | 120 | 29 | 2 | 2 | 111 | 111 | 5,900 | 7,000 | 1.45 |
| NJ311E | 55 | 120 | 29 | 2 | 2 | 137 | 143 | 5,300 | 6,300 | 1.65 |
| NJ312 | 60 | 130 | 31 | 2.1 | 2.1 | 124 | 126 | 5,500 | 6,500 | 1.8 |
| NJ312E | 60 | 130 | 31 | 2.1 | 2.1 | 150 | 157 | 4,900 | 5,800 | 2.05 |
| NJ313 | 65 | 140 | 33 | 2.1 | 2.1 | 135 | 139 | 5,100 | 6,000 | 2.23 |
| NJ313E | 65 | 140 | 33 | 2.1 | 2.1 | 181 | 191 | 4,600 | 5,400 | 2.54 |
| NJ314 | 70 | 150 | 35 | 2.1 | 2.1 | 158 | 168 | 4,700 | 5,500 | 2.71 |
| NJ314E | 70 | 150 | 35 | 2.1 | 2.1 | 205 | 222 | 4,200 | 5,000 | 3.1 |
| NJ315 | 75 | 160 | 37 | 2.1 | 2.1 | 190 | 205 | 4,400 | 5,200 | 3.28 |
| NJ315E | 75 | 160 | 37 | 2.1 | 2.1 | 240 | 263 | 4,000 | 4,700 | 3.74 |
Our Factory
Shipping
A: We are factory, our factory is located in guangzhou city .
A: Generally it is 2-5 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
A: Yes, we could offer the sample,but you need to pay the cost of sample and freight.
A:Western Union,Paypal,Bank transfer, T/T
If you have another question, pls feel free to contact us as below:
Contact Person: Lareina
Tel: 16626445338
Fax: 86-020-82258297
