| Product Name: | Cylindrical Roller Bearing | Bore Diameter: | 45mm |
|---|---|---|---|
| Outside Diameter: | 85mm | Overall Width: | 19mm |
| Weight: | 0.49kg | Material: | Bearing Steel |

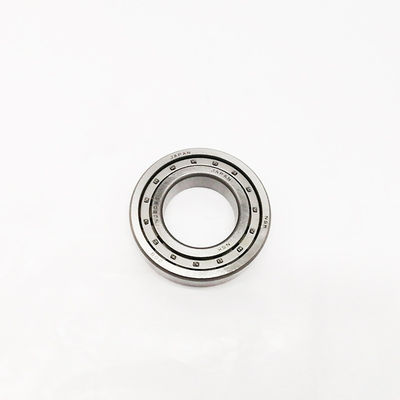

Excavator Spre Part Cylindrical Roller Bearing NJ209E Size 45*85*19 For Sale
Cylindrical Roller Bearing, in which either the inner or outer rings has two ribs and the other ring has one, are capable of taking some axial load in one direction Double-row cylindrical roller bearing have high radial rigidity and are used primarily for precision machine tools.
| Part Name: | Cylindrical Roller Bearing |
| Part Number | NJ209E |
| Size | 45*85*19mm |
| HS Code | 8482101000 |
| Type | Roller |
| MOQ | 1 PCE |
| Shipping | Air,Sea or Express |
(The pictures may not represent the actual product,please contact us to send the correct real picture...)
About Cylindrical Roller Bearing:
1.Cylindrical roller bearings are separable bearings, installation and removal is very convenient.
2.Cylindrical roller bearings can withstand greater radial load, suitable for use in high speed applications.
3.Cylindrical roller bearings can be divided into single row, double row and multi-row cylindrical roller bearings and other different structures.
4.Cylindrical roller bearings can be divided into PO, P6, P5, P4, P2 according to accuracy class.
Cylindrical roller bearing are of high load capacity and can operate at high speeds because they use rollers as their rolling elements. They can therefore be used in applications involving heavy radial and impact loading.
The rollers are cylindrical in shape and crowned at the end in order to reduce the stress concentrations. They are also suitable for applications that require high speed because the rollers are guided by ribs which are either on the outer or inner ring.
There are different types designated NU, NJ, NUP, N, NF for single-row bearings,and NNU, NN for double-row bearings depending on the design or absence of side ribs.
| NJ series | ||||
| Model | d mm | D mm | H mm | W kg |
| NJ 1024 EM | 120 | 180 | 28 | 3.8 |
| NJ 1026 EM | 130 | 200 | 33 | 3.96 |
| NJ 1028 EM | 140 | 210 | 33 | 4.8 |
| NJ 1030 EM | 150 | 225 | 35 | 4.8 |
| NJ 1032 EM | 160 | 240 | 38 | 6 |
| NJ 1034 EM | 170 | 260 | 42 | 8.5 |
| NJ 1036 EM | 180 | 280 | 46 | 11 |
| NJ 1038 EM | 190 | 290 | 46 | 11.8 |
| NJ 1040 EM | 200 | 310 | 51 | 15 |
| NJ 1044 EM | 220 | 340 | 56 | 19.6 |
| NJ 1048 EM | 240 | 360 | 56 | 20.8 |
| NJ 1052 EM | 260 | 400 | 65 | 30 |
| NJ 1056 EM | 280 | 420 | 65 | 34.2 |
| NJ 1060 EM | 300 | 460 | 74 | 45 |
| NJ 1064 EM | 320 | 480 | 74 | 47.8 |
| NJ 1068 EM | 340 | 520 | 82 | 68 |
| NJ 1072 EM | 360 | 540 | 82 | 67.7 |
| NJ 1080 EM | 400 | 600 | 90 | 95.5 |
| NJ 220 EM | 100 | 180 | 34 | 3.81 |
| NJ 222 EM | 110 | 220 | 38 | 5.11 |
