Product Details:
Payment & Shipping Terms:
|
| Product Name: | Cylindrical Roller Bearing | Bore Diameter: | 35mm |
|---|---|---|---|
| Outside Diameter: | 72mm | Overall Width: | 23mm |
| Load Direction: | Roller | Weight: | 0,42Kg |

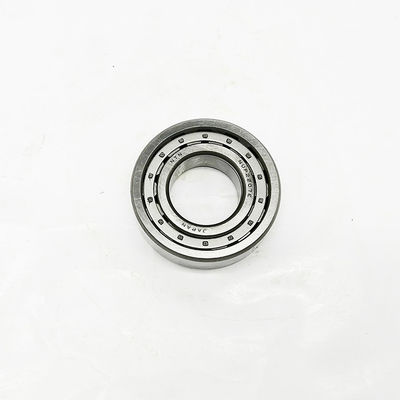

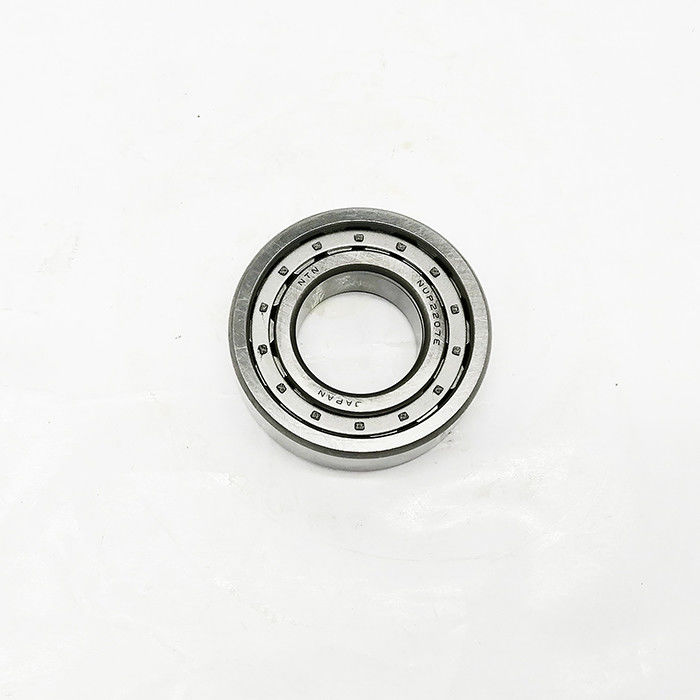

Construction Machinery Cylindrical Roller Bearing NUP2207E 35x72x23 mm
Cylindrical Roller Bearing, in which either the inner or outer rings has two ribs and the other ring has one, are capable of taking some axial load in one direction Double-row cylindrical roller bearing have high radial rigidity and are used primarily for precision machine tools.
| Part Name: | Cylindrical Roller Bearing |
| Part Number | NUP2207E |
| Size | 35x72x23 mm |
| Ring Material | Chrome Steel |
| Rolling Element Material | Chrome Steel |
| Cage Material | Sheet Steel |
| Stock | In Stock |
| HS Code | 8482101000 |
(The pictures may not represent the actual product,please contact us to send the correct real picture...)
Cylindrical roller bearings are available in a wide range of designs, series, variants and sizes. The main design differences are the number of roller rows and the inner/outer ring flanges as well as cage designs and materials. The bearings can meet the challenges of applications faced with heavy radial loads and high speeds. Accommodating axial displacement (except for bearings with flanges on both the inner and outer rings), they offer high stiffness, low friction and long service life. Cylindrical roller bearings are also available in sealed or split designs. In sealed bearings, the rollers are protected from contaminants, water and dust, while providing lubricant retention and contaminant exclusion. This provides lower friction and longer service life. Split bearings are intended primarily for bearing arrangements which are difficult to access, such as crank shafts, where they simplify maintenance and replacements.
| NJ2311 | NJ2312 | NJ2314 | NJ2315 |
| NJ2316 | NJ2322 | N3211 | NN3007MP4 |
| NN3008MK | NN3009MK | NN3010MK | NN3011MK |
| NN3012MK | NN3014K | NN3015K | 30202 |
| 30203 | 30204 | 30205 | 30206 |
| 30207 | 30208 | 30209 | 30210 |
| 30211 | 30212 | 30213 | 30214 |
| 30215 | 30216 | 30217 | 30218 |
| 30219 | 30302 | 30304 | 30305 |
| 30306 | 30307 | 30308 | 30309 |
| 30310 | 30311 | 30312 | 30313 |
| 30314 | 30315 | 30318 | 32205 |
Shipping and Payment
| Bearing No. | Boundary dimensions | Basic load rating(kN) | Limiting speeds | Mass | ||||||
| mm | Dynamic | Static | rpm | Kg | ||||||
| d | D | B | rs min | rs1 min | Cr | Cor | Grease | Oil | ||
| NUP2204E | 20 | 47 | 18 | 1 | 0.6 | 30.5 | 28.3 | 14,000 | 16,000 | 0.158 |
| NUP2205E | 25 | 52 | 18 | 1 | 0.6 | 35 | 34.5 | 11,000 | 13,000 | 0.186 |
| NUP2206E | 30 | 62 | 20 | 1 | 0.6 | 49 | 50 | 9,700 | 11,000 | 0.297 |
| NUP2207E | 35 | 72 | 23 | 1.1 | 0.6 | 61.5 | 65.5 | 8,500 | 10,000 | 0.455 |
| NUP2208 | 40 | 80 | 23 | 1.1 | 1.1 | 58 | 62 | 8,500 | 10,000 | 0.49 |
| NUP2208E | 40 | 80 | 23 | 1.1 | 1.1 | 72.5 | 77.5 | 7,600 | 8,900 | 0.552 |
| NUP2209 | 45 | 85 | 23 | 1.1 | 1.1 | 61.5 | 68 | 7,600 | 9,000 | 0.53 |
| NUP2209E | 45 | 85 | 23 | 1.1 | 1.1 | 76 | 84.5 | 6,800 | 8,000 | 0.6 |
| NUP2210 | 50 | 90 | 23 | 1.1 | 1.1 | 64 | 73.5 | 6,900 | 8,100 | 0.571 |
| NUP2210E | 50 | 90 | 23 | 1.1 | 1.1 | 79.5 | 91.5 | 6,200 | 7,300 | 0.652 |
| NUP2211 | 55 | 100 | 25 | 1.5 | 1.1 | 75.5 | 87 | 6,300 | 7,400 | 0.773 |
| NUP2211E | 55 | 100 | 25 | 1.5 | 1.1 | 97 | 114 | 5,600 | 6,600 | 0.968 |
| NUP2212 | 60 | 110 | 28 | 1.5 | 1.5 | 96 | 116 | 5,800 | 6,800 | 1.06 |
| NUP2212E | 60 | 110 | 28 | 1.5 | 1.5 | 131 | 157 | 5,200 | 6,100 | 1.21 |
| NUP2213 | 65 | 120 | 31 | 1.5 | 1.5 | 120 | 149 | 5,400 | 6,300 | 1.4 |
| NUP2213E | 65 | 120 | 31 | 1.5 | 1.5 | 149 | 181 | 4,800 | 5,600 | 1.6 |
| NUP2214 | 70 | 125 | 31 | 1.5 | 1.5 | 119 | 151 | 5,000 | 5,900 | 1.47 |
| NUP2214E | 70 | 125 | 31 | 1.5 | 1.5 | 156 | 194 | 4,500 | 5,200 | 1.7 |
| NUP2215 | 75 | 130 | 31 | 1.5 | 1.5 | 130 | 162 | 4,700 | 5,500 | 1.55 |
| NUP2215E | 75 | 130 | 31 | 1.5 | 1.5 | 162 | 207 | 4,200 | 4,900 | 1.79 |
| NUP2216 | 80 | 140 | 33 | 2 | 2 | 147 | 186 | 4,400 | 5,100 | 1.93 |
| NUP2216E | 80 | 140 | 33 | 2 | 2 | 186 | 243 | 3,900 | 4,600 | 2.12 |
| NUP2217 | 85 | 150 | 36 | 2 | 2 | 170 | 218 | 4,100 | 4,800 | 2.44 |
| NUP2217E | 85 | 150 | 36 | 2 | 2 | 217 | 279 | 3,700 | 4,300 | 2.68 |
| NUP2218 | 90 | 160 | 40 | 2 | 2 | 197 | 248 | 3,900 | 4,600 | 3.1 |
| NUP2218E | 90 | 160 | 40 | 2 | 2 | 242 | 315 | 3,500 | 4,100 | 3.33 |
| NUP2219 | 95 | 170 | 43 | 2.1 | 2.1 | 230 | 298 | 3,600 | 4,300 | 3.79 |
| NUP2219E | 95 | 170 | 43 | 2.1 | 2.1 | 286 | 370 | 3,300 | 3,800 | 4.14 |
| NUP2220 | 100 | 180 | 46 | 2.1 | 2.1 | 258 | 340 | 3,500 | 4,100 | 4.57 |
| NUP2220E | 100 | 180 | 46 | 2.1 | 2.1 | 335 | 445 | 3,100 | 3,600 | 5.01 |
| NUP2222 | 110 | 200 | 53 | 2.1 | 2.1 | 320 | 415 | 3,100 | 3,700 | 6.56 |
| NUP2222E | 110 | 200 | 53 | 2.1 | 2.1 | 385 | 515 | 2,800 | 3,300 | 7.4 |
| NUP2224 | 120 | 215 | 58 | 2.1 | 2.1 | 350 | 460 | 2,900 | 3,400 | 8.19 |
| NUP2224E | 120 | 215 | 58 | 2.1 | 2.1 | 450 | 620 | 2,600 | 3,000 | 9.18 |
| NUP2226 | 130 | 230 | 64 | 3 | 3 | 380 | 530 | 2,600 | 3,100 | 10.2 |
| NUP2226E | 130 | 230 | 64 | 3 | 3 | 530 | 735 | 2,300 | 2,700 | 11.8 |
| NUP2228 | 140 | 250 | 68 | 3 | 3 | 445 | 635 | 2,400 | 2,800 | 12.9 |
| NUP2228E | 140 | 250 | 68 | 3 | 3 | 575 | 835 | 2,100 | 2,500 | 15.8 |
| NUP2230 | 150 | 270 | 73 | 3 | 3 | 500 | 710 | 2,200 | 2,600 | 16.3 |
| NUP2230E | 150 | 270 | 73 | 3 | 3 | 660 | 980 | 2,000 | 2,400 | 19.7 |
