| Product Name: | Deep Groove Bearing | INSIDE DIAMETER: | 70MM |
|---|---|---|---|
| OUTSIDE DIAMETER: | 110MM | WIDTH: | 20MM |
| Weight: | 0.605kg | Precision: | Standard Precision |

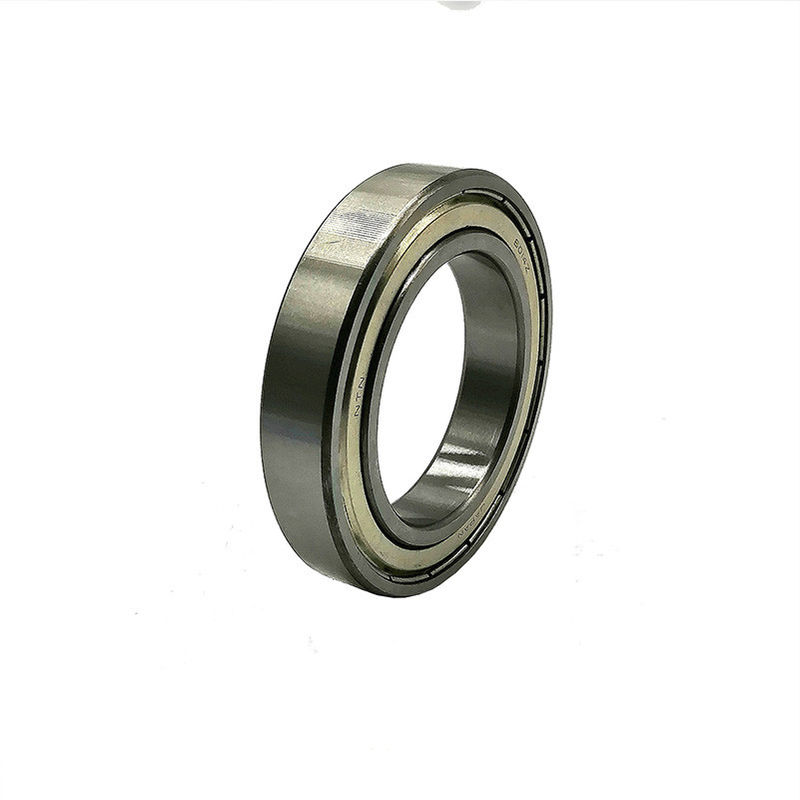

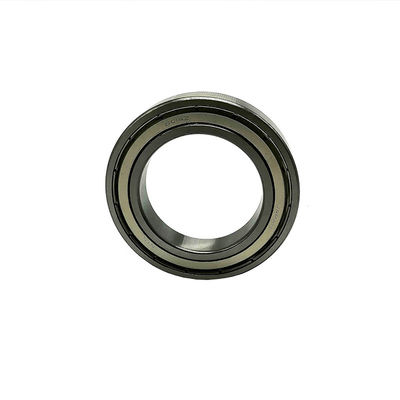

Original Spare Part 6014Z Deep Groove Bearing 70x110x20mm
Deep groove ball bearing are the most widely used bearing type and are particularly versatile. They have low friction and are optimized for low noise and low vibration which enables high rotational speeds.
| Part Name: | Deep Groove Bearing |
| Part Number | 6014Z |
| Size | 70x110x20mm |
| Shipping | Express/By Plane /By Sea |
| Stock | In Stock |
| Material | Chrome Steel or Stainless Steel |
| Structure | Deep Groove |
(The pictures may not represent the actual product,please contact us to send the correct real picture...)
Single row radial deep groove ball bearings are rigid and non-separable in design. They incorporate deep running grooves on their inner and out rings creating a ball path that accepts axial and radial loading. The balls are separated by a cage that permits high speed operation. Their ability to accept misalignment is very limited however. In normal operation they can't handle misalignment any greater than 10 angular minutes from their centre position. Single Row Deep Groove Ball Bearings have the highest speed capacity of all rolling element bearings, and are by far the most popular bearing type in use today.
Other Products
| tem number | ID | OD | Width | Cr | Cor | Speed for grease lubrication | Oil lubrication speed | weight |
| (mm) | (mm) | (mm) | (kN) | (kN) | (r/min) | (r/min) | (kg) | |
| 6014 | 70 | 110 | 20 | 38.5 | 30.5 | 5600 | 6700 | 0.57 |
| 6300 | 10 | 35 | 11 | 7.65 | 3.48 | 18000 | 24000 | 0.053 |
| 61801 | 12 | 21 | 5 | 1.9 | 1 | 24000 | 32000 | 0.006 |
| 61901 | 12 | 24 | 6 | 2.9 | 1.5 | 22000 | 28000 | 0.011 |
| 16001 | 12 | 28 | 7 | 5.1 | 2.4 | 20000 | 26000 | 0.024 |
| 6001 | 12 | 28 | 8 | 5.1 | 2.38 | 20000 | 26000 | 0.022 |
| 6201 | 12 | 32 | 10 | 6.82 | 3.05 | 19000 | 24000 | 0.037 |
| 6301 | 12 | 37 | 12 | 9.72 | 5.08 | 17000 | 22000 | 0.06 |
| 61802 | 15 | 24 | 5 | 2.1 | 1.3 | 22000 | 30000 | 0.007 |
| 61902 | 15 | 28 | 7 | 4.3 | 2.3 | 20000 | 26000 | 0.017 |
| 16002 | 15 | 32 | 8 | 5.6 | 2.8 | 19000 | 24000 | 0.025 |
| 6002 | 15 | 32 | 9 | 5.58 | 2.85 | 19000 | 24000 | 0.03 |
| 6202 | 15 | 35 | 11 | 7.65 | 3.72 | 18000 | 22000 | 0.045 |
| 6302 | 15 | 42 | 13 | 11.5 | 5.42 | 16000 | 20000 | 0.082 |
| 61803 | 17 | 26 | 5 | 2.2 | 1.5 | 20000 | 28000 | 0.008 |
| 61903 | 17 | 30 | 7 | 4.6 | 2.6 | 19000 | 24000 | 0.018 |
| 16003 | 17 | 35 | 8 | 6 | 3.3 | 18000 | 22000 | 0.032 |
| 6003 | 17 | 35 | 10 | 6 | 3.25 | 17000 | 21000 | 0.04 |
| 6203 | 17 | 40 | 12 | 9.58 | 4.78 | 16000 | 20000 | 0.065 |
| 6303 | 17 | 47 | 14 | 13.5 | 6.58 | 15000 | 18000 | 0.115 |
| 6403 | 17 | 62 | 17 | 22.7 | 10.8 | 11000 | 15000 | 0.27 |
| 61804 | 20 | 32 | 7 | 3.5 | 2.2 | 18000 | 24000 | 0.018 |
| 61904 | 20 | 37 | 9 | 6.4 | 3.7 | 17000 | 22000 | 0.036 |
