Product Details:
Payment & Shipping Terms:
|
| Product Name: | High Pressure Shaft Seal | Brand: | NAK |
|---|---|---|---|
| Size: | 14*24*7/7.5 | Type: | TCN11 |
| Material: | NBR | For: | Hydraulic Pumps, Hydraulic Motors,hydrodynamic Clutches |
| High Light: | NAK High Pressure Rotary Seals,TCN11 High Pressure Rotary Seals,NBR High Pressure Rotary Seals |
||

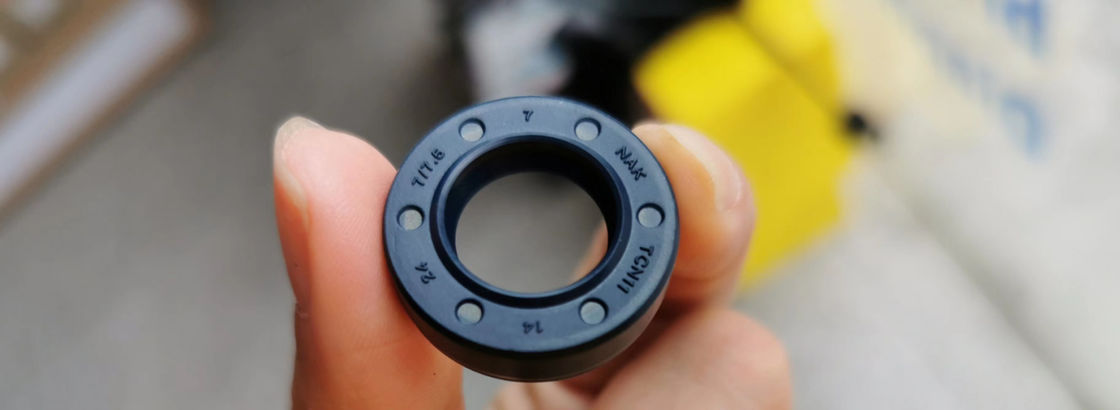

NAK High Pressure Rotary Seals TCN11 14 * 24 * 7 / 7.5 Black NBR Hydraulic Pump Seals
Rotary Seals involve rotational motion from a shaft and housing. Used in oscillating or rotating parts, their primary function is to keep lubricated fluids in, whilst preventing the ingress of contaminants, such as mud and water.
Applications:
For sealing pressurized media without additional backup ring.
For rotational pressure sealing in hydraulic pumps, hydraulic motors,hydrodynamic clutches.
The picture may not represent the actual product,please contact us to send the correct real picture...
| Item: | High Pressure Shaft Seal |
| Brand | NAK |
| OEM | TCN11 14*24*7/7.5 |
| Material: | NBR FKM |
| Application | Hydraulic pumps, Hydraulic motors,Hydrodynamic Clutches |
| Temperature |
-40℃ to 100℃(NBR) -25℃to 200℃(FKM) |
| Linear velocity | ≦5m/s |
| Pressure |
≦10 bar Maximum pressure limit is depending on surface speed. |
(We're the dealer of NAK seals)
(NAK Packing)
More items for your reference:
| Type | ID | OD | H | Material | Type | ID | OD | H | Material |
| TCN11 | 12 | 22 | 5/5.5 | NBR | TCN11 | 20 | 35 | 7 | FKM |
| TCN11 | 20 | 35 | 7/7.5 | NBR | TCN11 | 25 | 37 | 6/6.5 | FKM |
| TCN11 | 25 | 37 | 6/6.5 | NBR | TCN11 | 35 | 52 | 6/6.5 | FKM |
| TCN11 | 25 | 40 | 7/7.5 | NBR | TCN11 | 45 | 58 | 7/7.5 | FKM |
| TCN11 | 25 | 40 | 8/8.5 | NBR | TCN11 | 45 | 62 | 6/6.5 | FKM |
| TCN11 | 25 | 42 | 6/6.5 | NBR | TCN11 | 45 | 62 | 7/7.5 | FKM |
| TCN11 | 25 | 45 | 11/11.5 | NBR | TCN11 | 45 | 65 | 7/7.5 | FKM |
| TCN11 | 25 | 47 | 6/6.5 | NBR | TCN11 | 45 | 80 | 7.5/8 | FKM |
| TCN11 | 30 | 40 | 5/5.5 | NBR | TCN11 | 50 | 65 | 7/7.5 | FKM |
| TCN11 | 30 | 42 | 6/6.5 | NBR | TCN11 | 50 | 68 | 7/7.5 | FKM |
| TCN11 | 30 | 42 | 7/7.5 | NBR | TCN11 | 50 | 72 | 7/7.5 | FKM |
| TCN11 | 30 | 47 | 7/7.5 | NBR | TCN11 | 50 | 80 | 7.5/8 | FKM |
| TCN11 | 30 | 50 | 11/11.5 | NBR | TCN11 | 50 | 80 | 8/8.5 | FKM |
| TCN11 | 30 | 52 | 7/7.5 | NBR | TCN11 | 55 | 70 | 7.5/8 | FKM |
| TCN11 | 35 | 47 | 6/6.5 | NBR | TCN11 | 55 | 70 | 8/8.5 | FKM |
| TCN11 | 35 | 47 | 7/7.5 | NBR | TCN11 | 55 | 72 | 7/7.5 | FKM |
| TCN11 | 35 | 50 | 7/7.5 | NBR | TCN11 | 55 | 75 | 7/7.5 | FKM |
| TCN11 | 35 | 52 | 6/6.5 | NBR | TCN11 | 55 | 90 | 7/7.5 | FKM |
| TCN11 | 35 | 55 | 10/12 | NBR | TCN11 | 60 | 75 | 8/8.5 | FKM |
| TCN11 | 35 | 55 | 11/11.5 | NBR | TCN11 | 60 | 75 | 10/10.5 | FKM |
| TCN11 | 35 | 72 | 10/10.5 | NBR | TCN11 | 60 | 80 | 7/7.5 | FKM |
| TCN11 | 35 | 80 | 8/8.5 | NBR | TCN11 | 60 | 82 | 12/12.5 | FKM |
| TCN11 | 40 | 55 | 6/6.5 | NBR | TCN11 | 60 | 106 | 7/7.5 | FKM |
| TCN11 | 40 | 55 | 7/7.5 | NBR | TCN11 | 65 | 85 | 10/10.5 | FKM |
| TCN11 | 40 | 56 | 6/6.5 | NBR | TCN11 | 65 | 88 | 7/7.5 | FKM |
| TCN11 | 40 | 58 | 8/8.5 | NBR | TCN11 | 65 | 90 | 7/7.5 | FKM |
| TCN11 | 40 | 62 | 6/6.5 | NBR | TCN11 | 68 | 90 | 14/14.5 | FKM |
| TCN11 | 40 | 62 | 11/11.5 | NBR | TCN11 | 80 | 100 | 7/7.5 | FKM |
| TCN11 | 40 | 72 | 7/7.5 | NBR | TCN11 | 80 | 100 | 10/10.5 | FKM |
| TCN11 | 45 | 58 | 6/6.5 | NBR | TCN11 | 80 | 105 | 7.5/8 | FKM |
| TCN11 | 45 | 58 | 7/7.5 | NBR | TCN11 | 100 | 120 | 7.5/8 | FKM |
